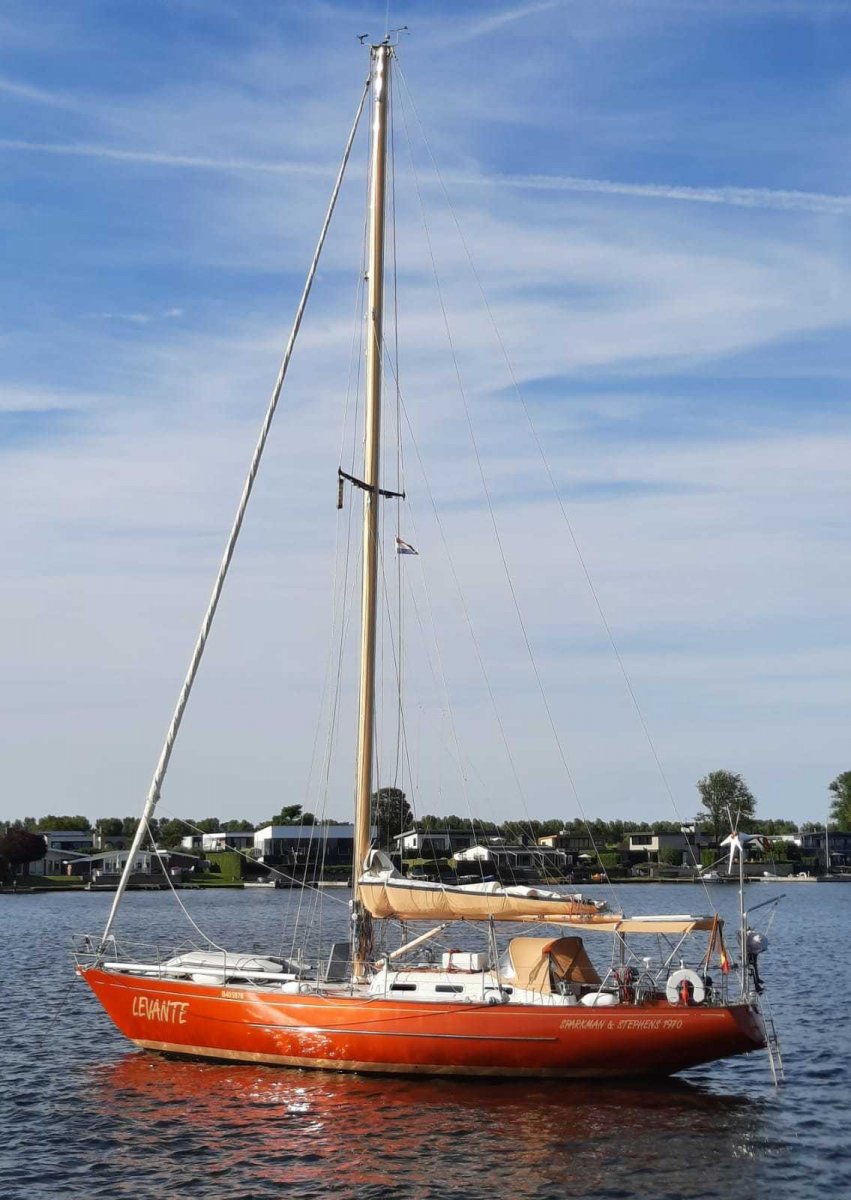

Sparkman & Stephens Freya Class 44
Sold
Reference number: None
Category: Sailing Yacht
Year built: 1970
Berth: Jachthaven Antwerpen Linkeroever
Asking price: Sold
Material: GRP - sandwich
Dimensions: 13.31 m x 3.76 m x 2.20 m
Short description Sharp classic yacht, fully equipped and ready to depart!
Designer
Sparkman & Stephens

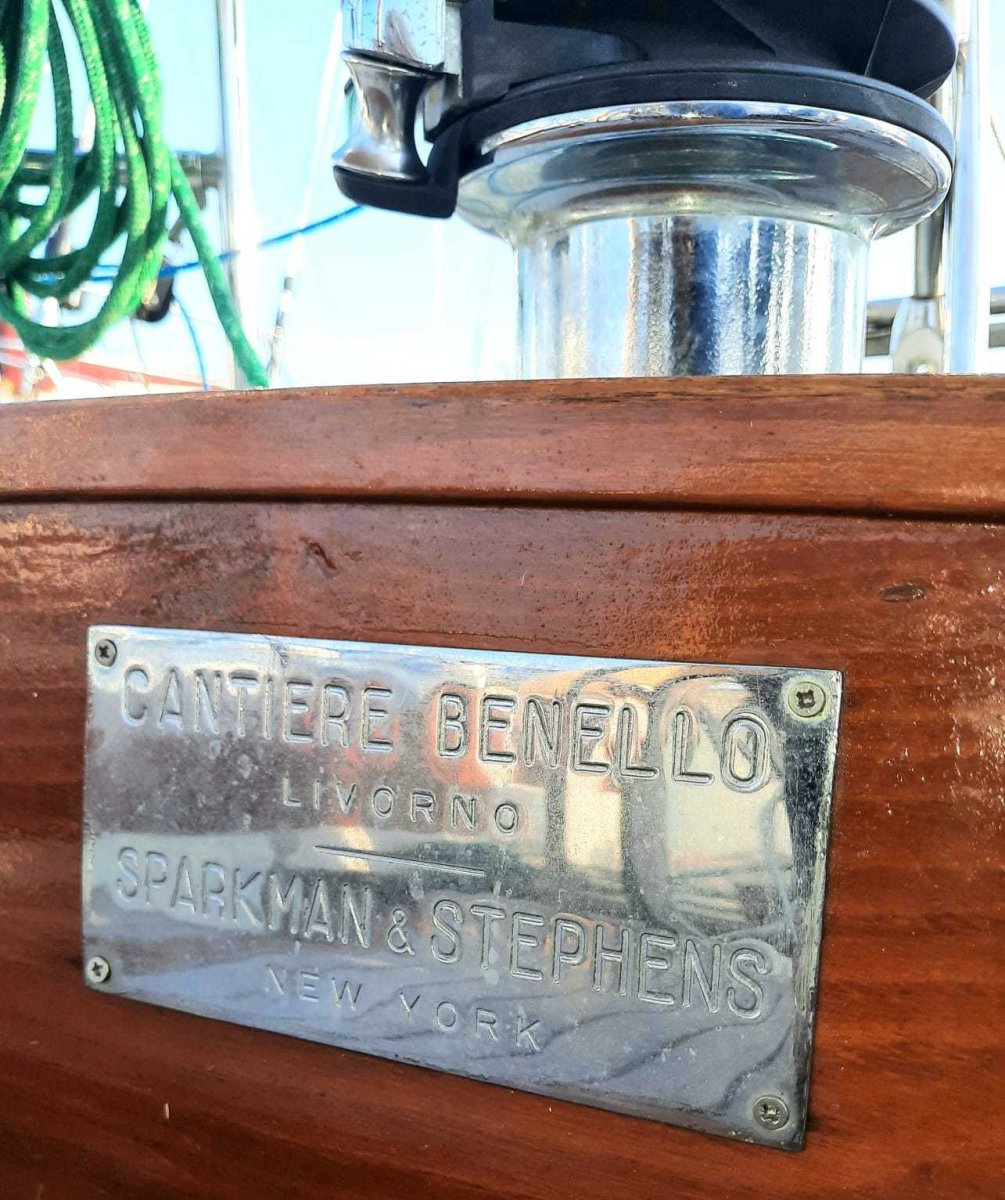

Shipyard
Benello (Livorno - Italië)
Hull number
HL59040
Hull shape
Roundbilge

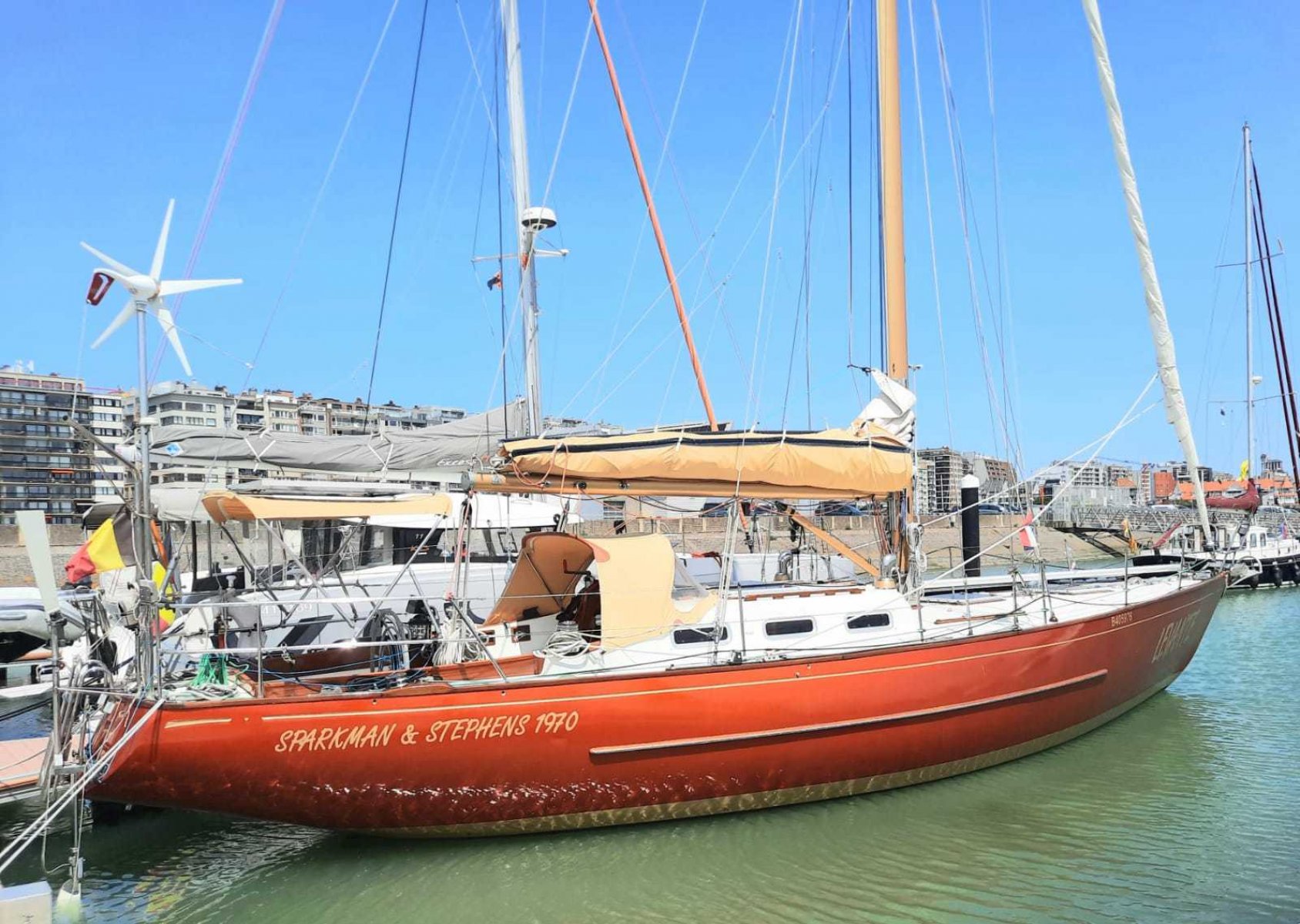

The hull was finished with a metallic copper/orange wrap.
The hull was finished with a metallic copper/orange wrap.
Hull colour
White
Deck colour
White
Deck construction
Grp - sandwich
Cockpit
Aft cockpit
Vertical clearance
19.6 m
60 cm length antenna included in19m60
60 cm length antenna included in19m60
Draught
220 cm
Waterline length
991 cm
Displacement
10,138 kg
Ballast
4,990 kg

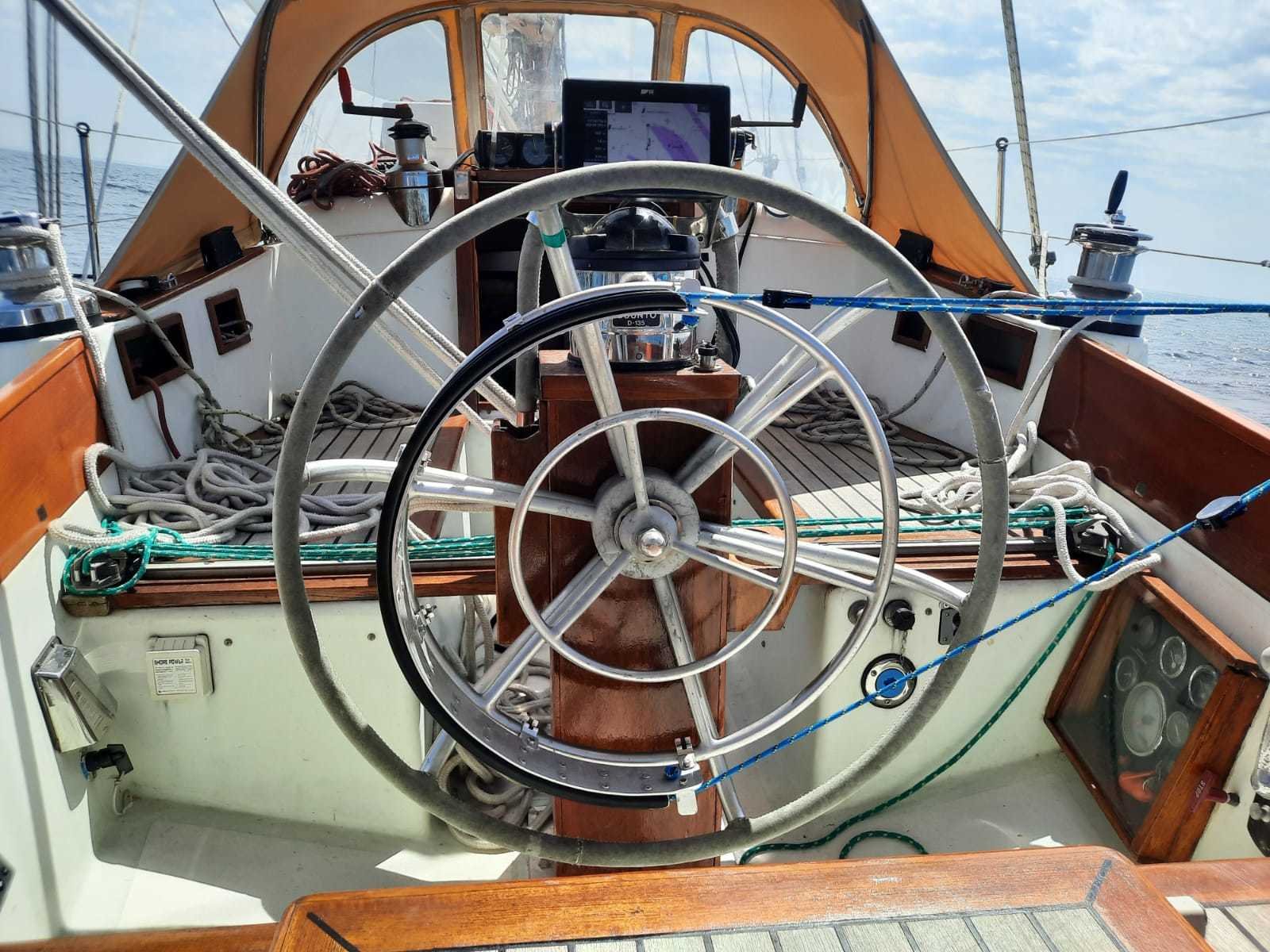

Steering system
Wheel
Position steering system
Outside
Rudder
Single
Rudder on skeg
Rudder on skeg
Keel/Lee board
Fixed keel

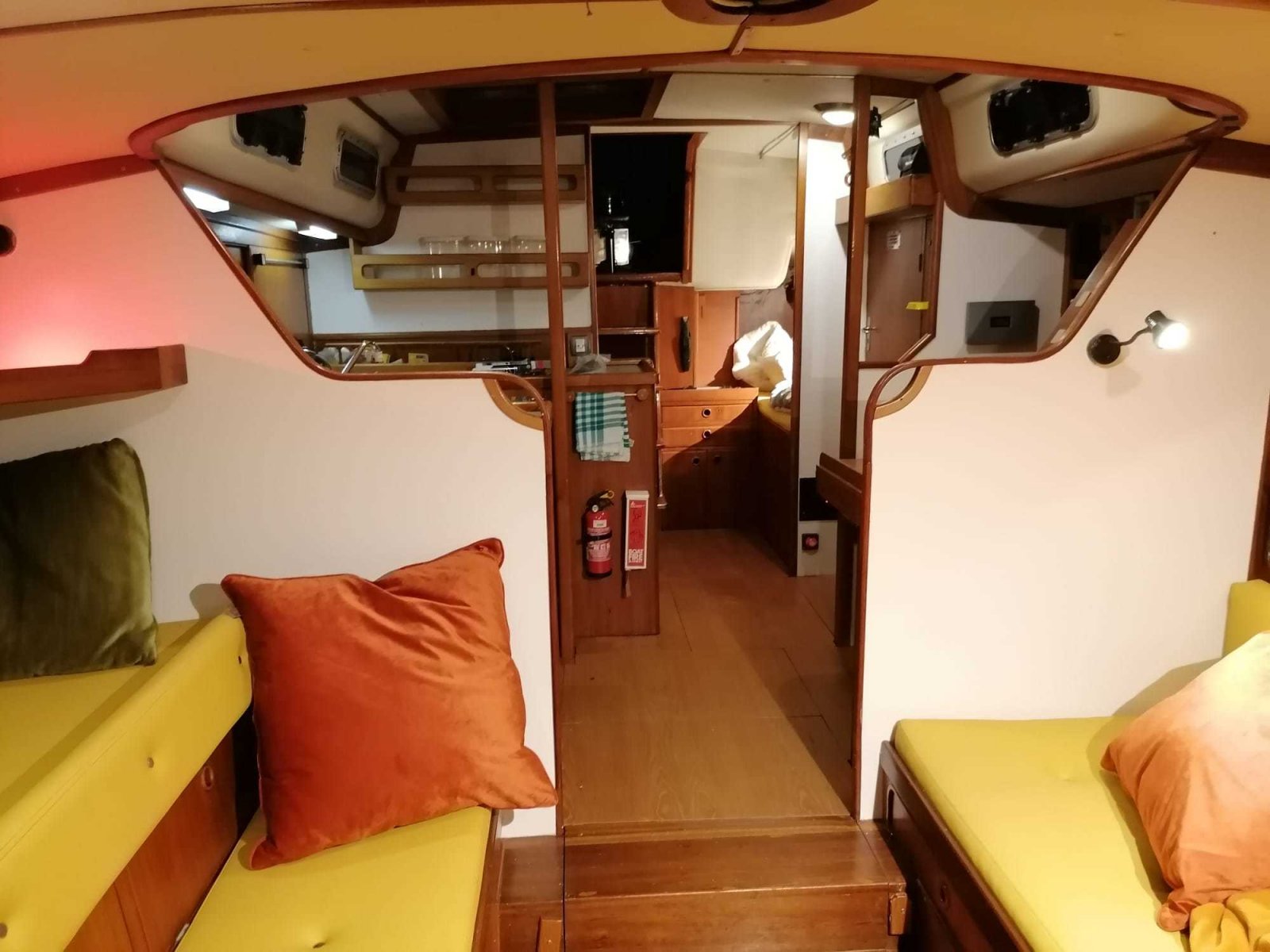

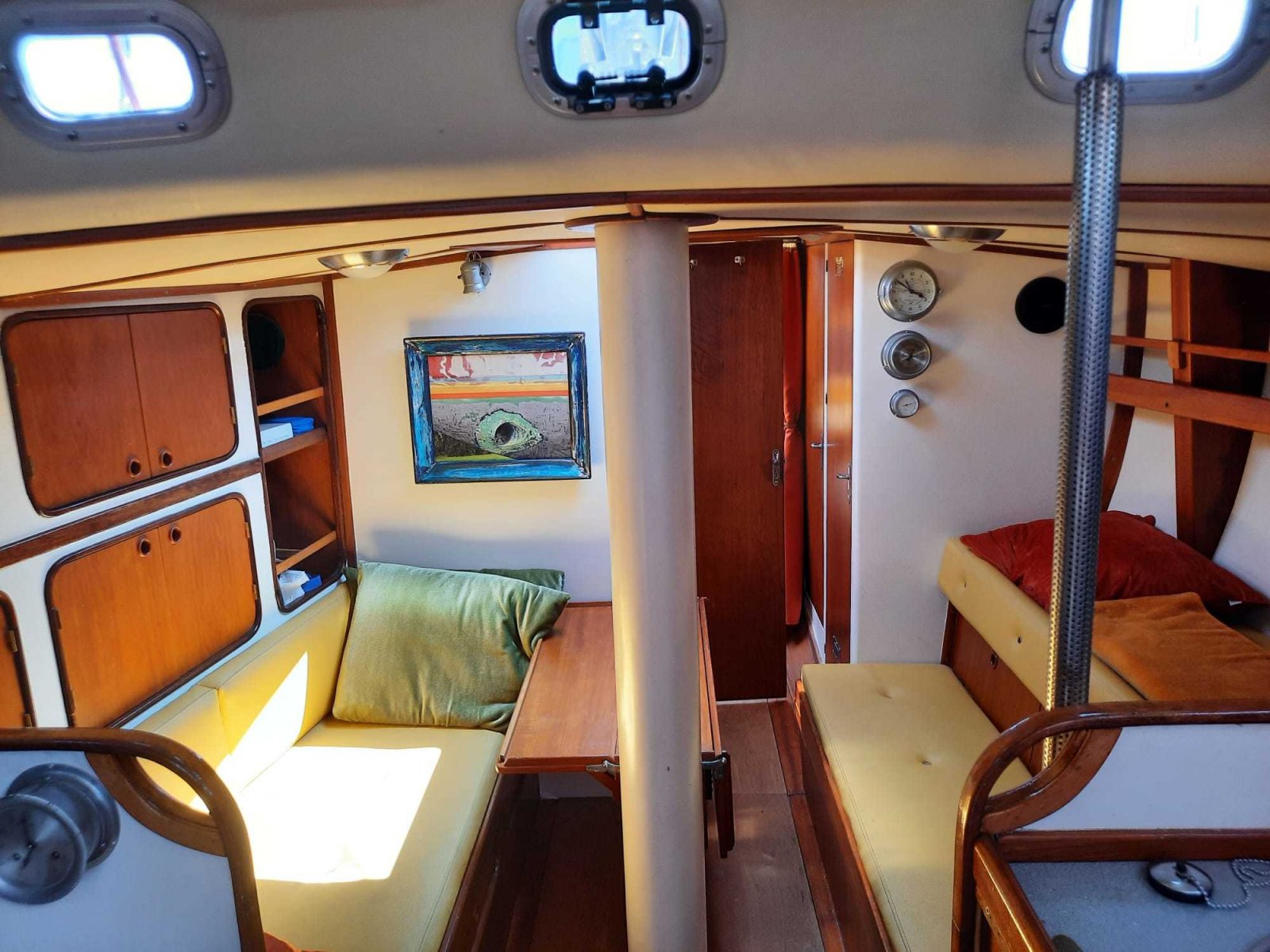

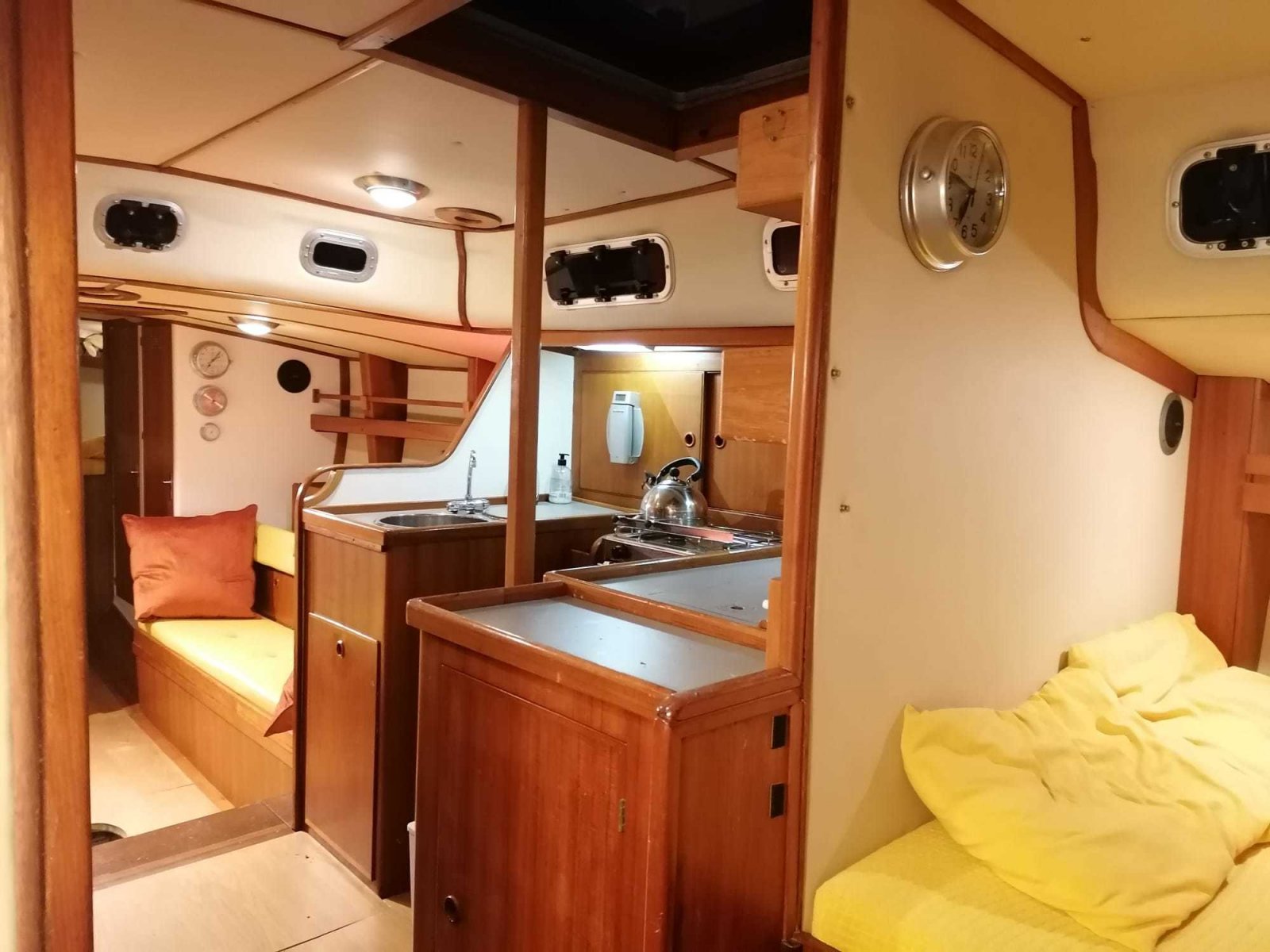

Saloon
Layout and spaces inside

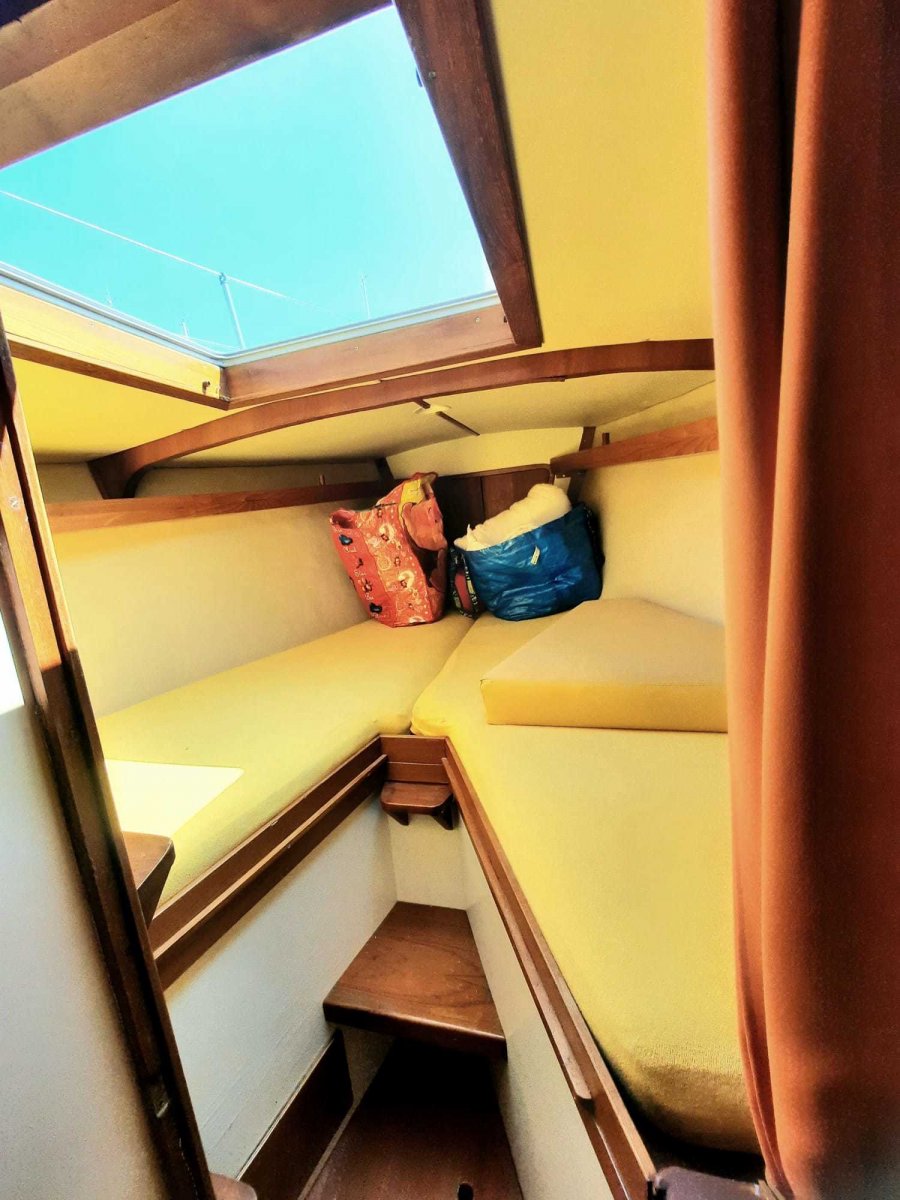

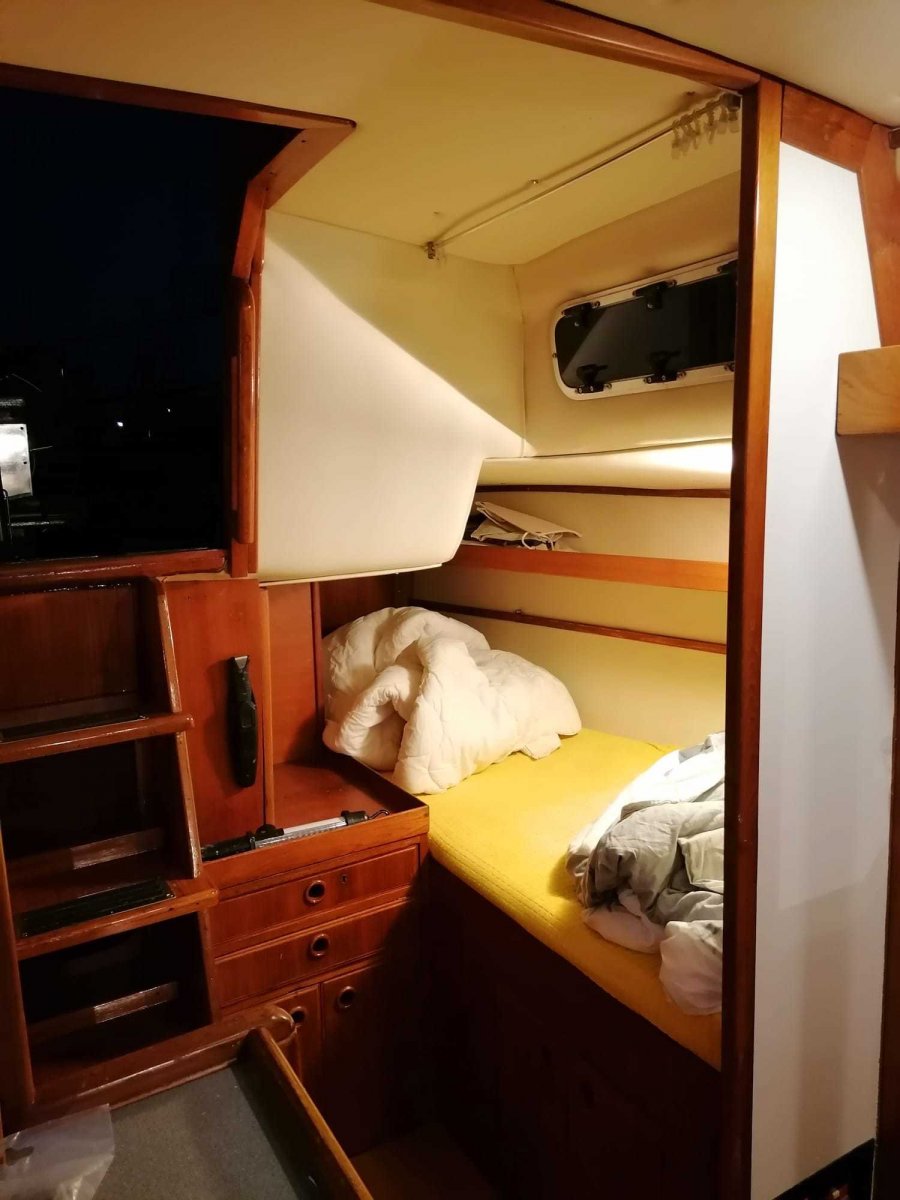

2 fixed berths (bed port 145cm wide, bed starboard 100cm wide) 2 fixed berths in the forecastle (2x 80cm wide) 1 berth upstairs in the saloon (1x 75cm wide)
Headroom
185 cm
Separate Dining area
Berths
fixed: 5 Extra: 1
Type interior
Classic, warm
Color upholstery
Yellow
Mattresses
Cushions
Curtains
Water tank & material
500 litre Stainless steel
The total water capacity of 300L is divided into 2 water tanks, 1 in polyester and 1 in stainless steel
The total water capacity of 300L is divided into 2 water tanks, 1 in polyester and 1 in stainless steel
Water tank gauge
Waste water tank
85 Litre
Water system
Pressure system
Hot water
Boiler electric on shore power.
Number of showers
1
Hand shower in bathroom
Hand shower in bathroom

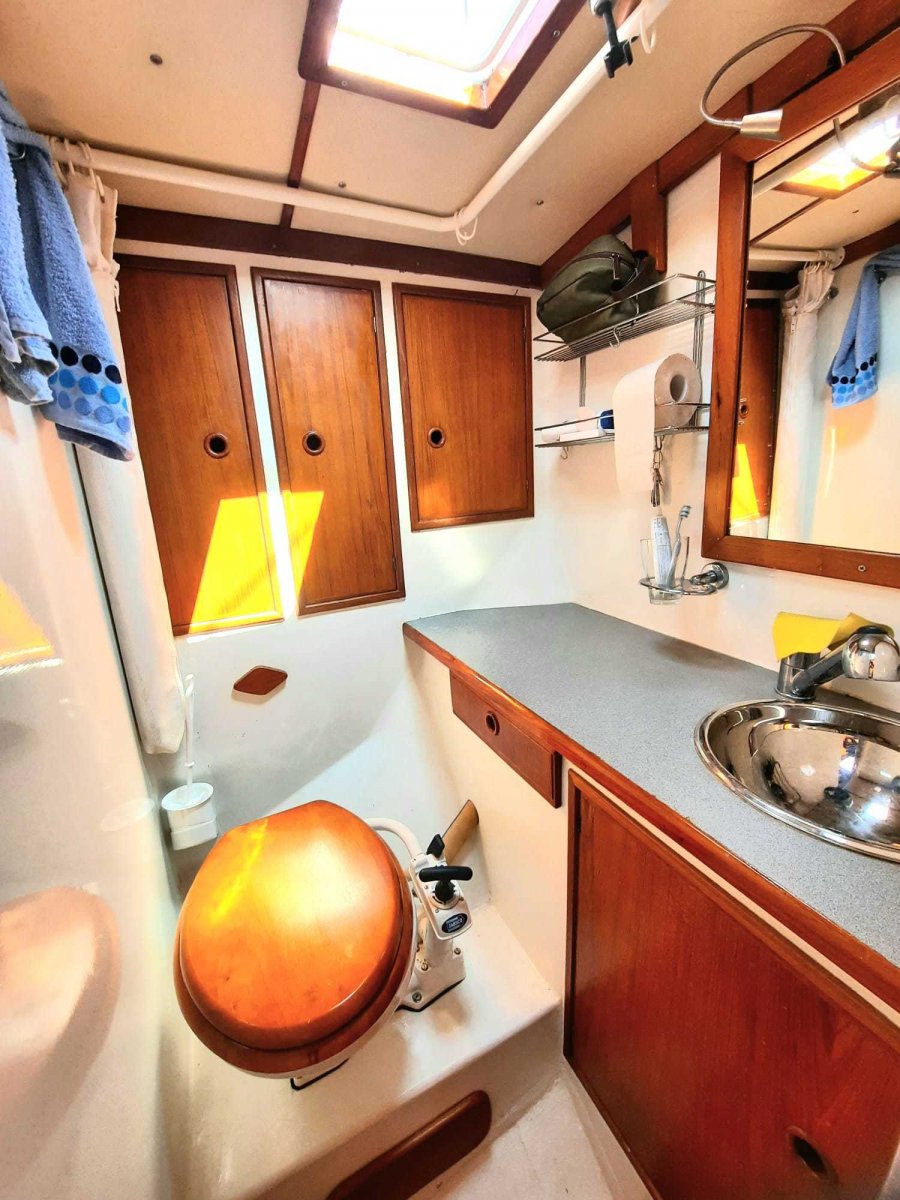

Toilets
1 Manual
Manual
Television
Android screen for data stream.
Radio/CD player

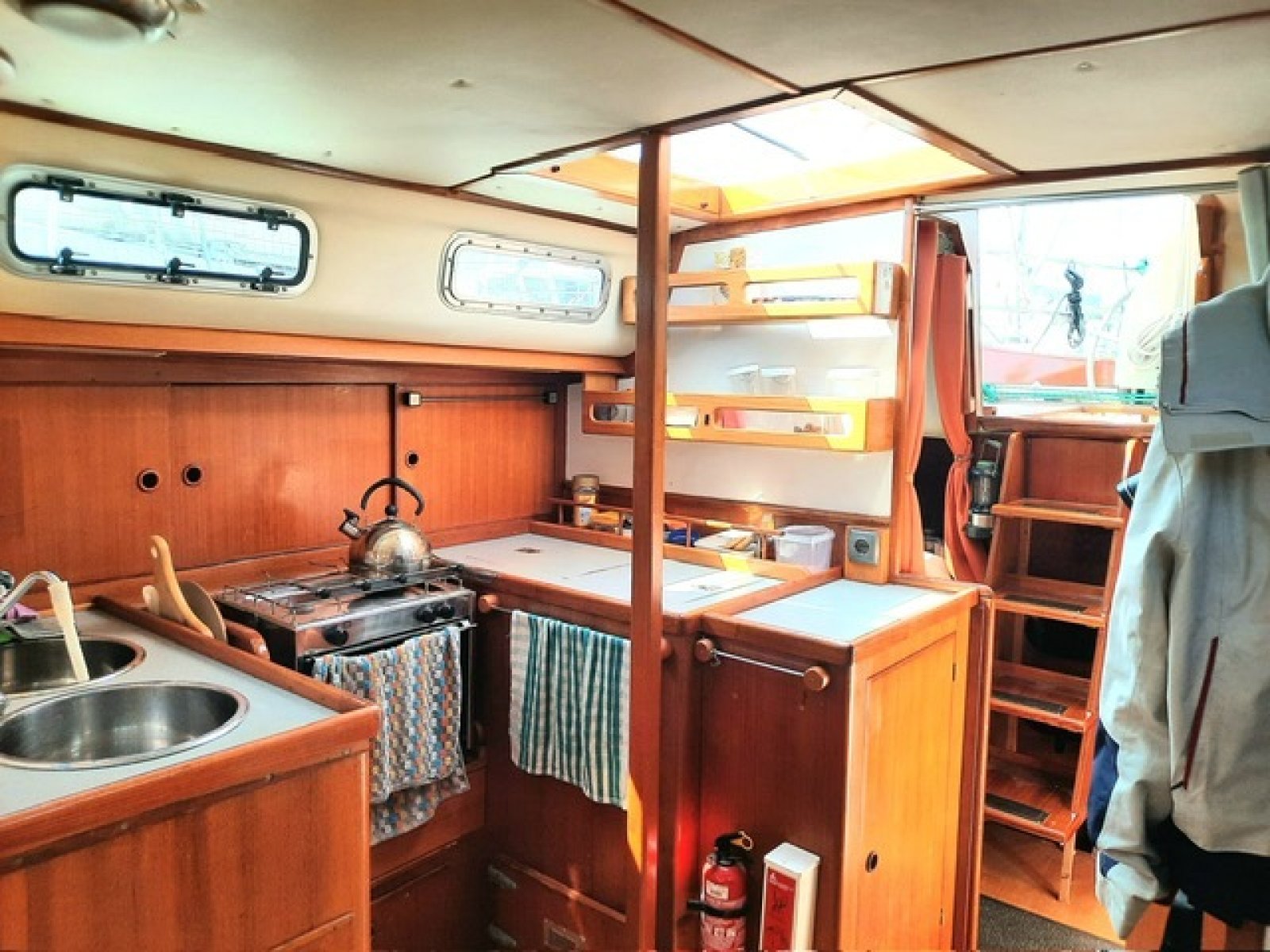

Cooker & fuel
2 burner(s) Gas
BEP gas detector and automatic gas shut-off valve
BEP gas detector and automatic gas shut-off valve
Oven
Fridge & power source
120 Litre Electric
Freezer
60 Litre
The freezer compartment is a compartment inside the refrigerator.
The freezer compartment is a compartment inside the refrigerator.
Heating
stove
Dickinson Marine Force 10 (propane). Also an electric portable heater.
Number of identical engines
1
Starting type
Electric
Type
Inboard

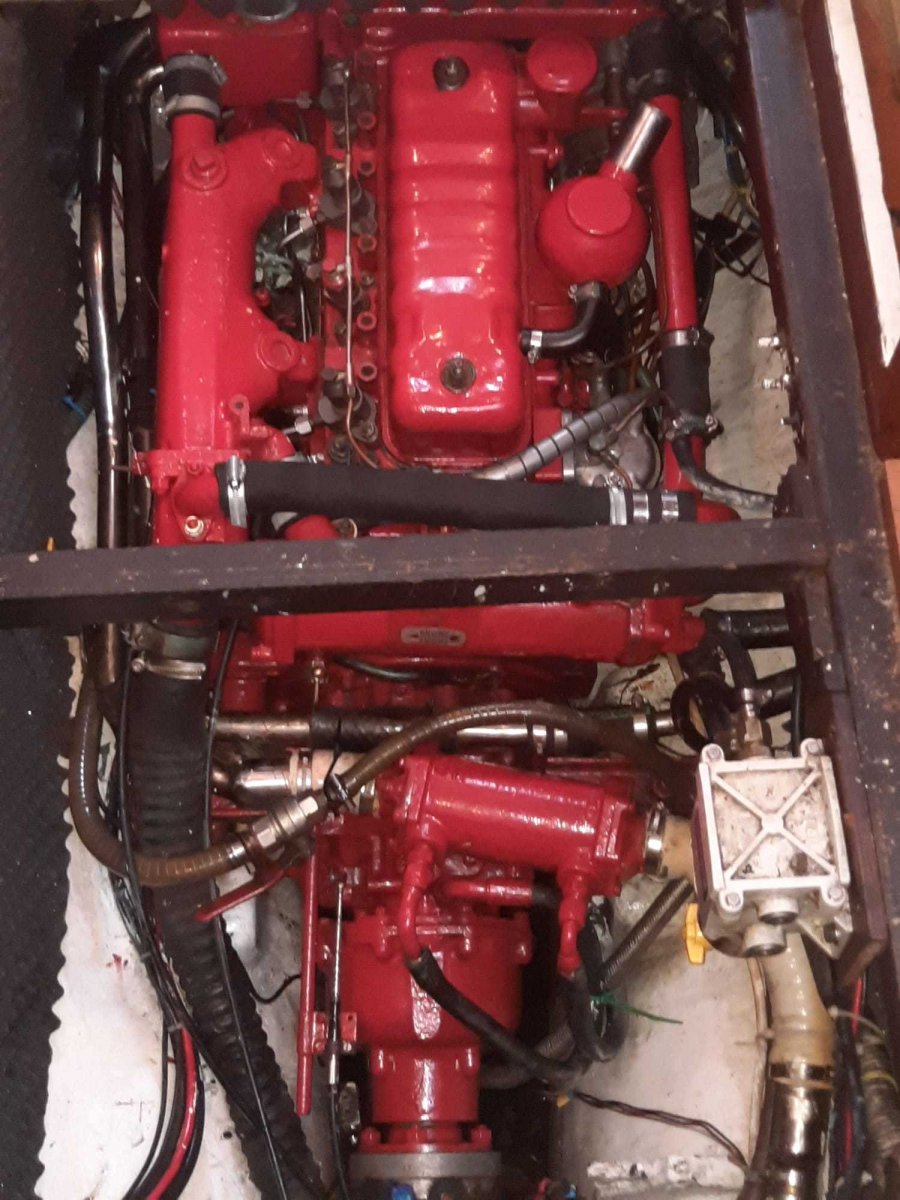

Brand
Perkins 4108
Refurbished in 2024
Refurbished in 2024
Serial number
EDA2639U536607E
Year
1978
Number of cylinders
4
Power
35.3 kW
Hours counter
Engine hours
3,890
Fuel
Diesel
Fuel consumption
3 litre/hour
Gearbox
Borg Warner 2015
Transmission
Shaft
Propulsion
Folding propellor
Cooling system
Indirect
Fuel tanks
2
Fuel tanks made of polyester, built into the hull.
Fuel tanks made of polyester, built into the hull.
Total fuel tank(s) capacity
220 Litre
Max speed
7 knots
7 knots at 2000 rpm
7 knots at 2000 rpm
Cruising speed
5 knots
5 knots at 1400 rpm
5 knots at 1400 rpm
Fuel tank gauge
Tachometer
Oil pressure gauge
Temperature gauge
Bow thruster
Electric
Battery
3 x 125 Ah
Batteries date from 2024
Batteries date from 2024
Battery charger
50 A
Victron Energy Phoenix 12V 50AMP
Victron Energy Phoenix 12V 50AMP
Battery monitor
Inverter
50 Watt
Voltmeter
Shore power
Shore power cable
Wind generator
Solar panel
Consumption monitor
Voltage
12V
Compass
Suunto D135
Log/speed
Sylva Nexus
Depth gauge
Sylva Nexus
Wind gauge
Sylva Nexus
Windvane steering
Brand Bouvaan
Navigation lights
Autopilot
Sylva Nexus
GPS
Furuno GP33
Also GPS via Navionics on the Android screen. External USB GPS receiver.
Also GPS via Navionics on the Android screen. External USB GPS receiver.
Chart plotter
Raymarine
Axiom Plus 7
Axiom Plus 7
AIS
Transponder/ontvanger gekoppeld aan Android scherm.
VHF
Standard Horizon
Eclipse (fixed) and HX210 (mobile)
Eclipse (fixed) and HX210 (mobile)
Weatherfax/Navtex
Furuno NX300

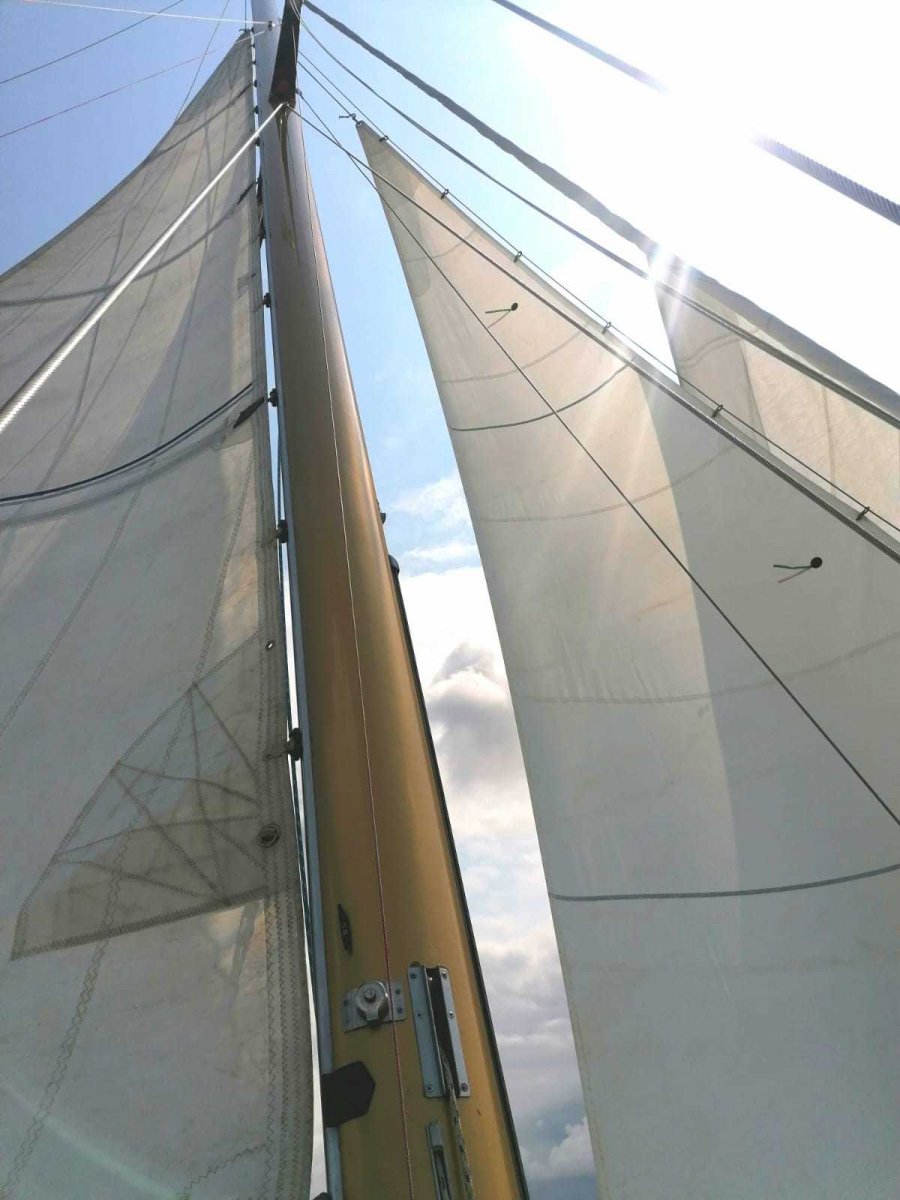

Sailplan type
Sloop
Number of masts
1
Spars material
Aluminium
Standing rig
Steel wire

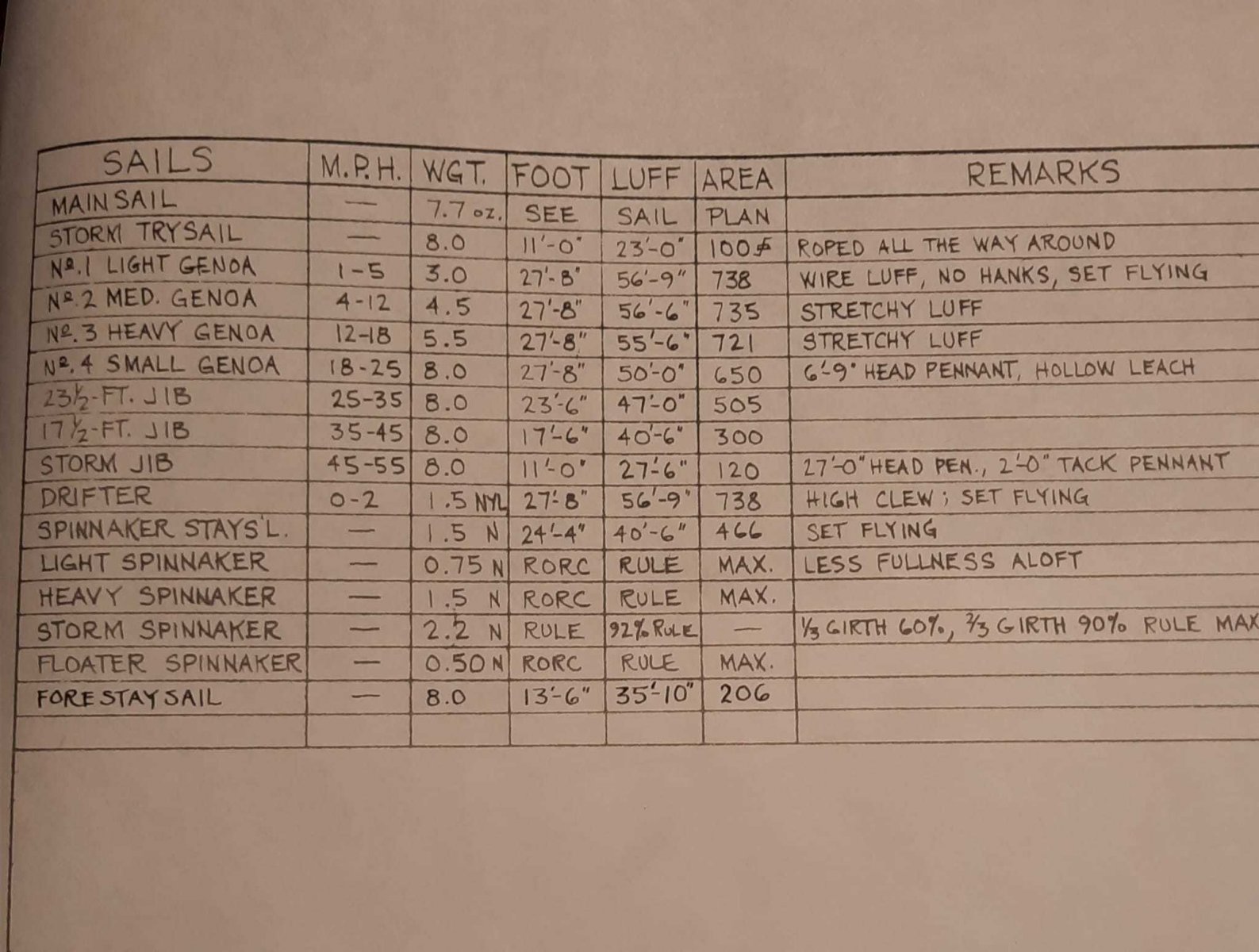

Sail surface
85.60 m2
Sails material
Dacron
Main sail
Lazy jackets available.
Genoa
Jib
Cutter jib with leuvers on cutterstays.
Furling foresail
Storm jib
Spinnaker
Spiboom present
Gennaker
Manual winches
5
Anchors & material
1 x Rocna Galvanized
100 meter anchor chain stainless steel
100 meter anchor chain stainless steel
Anchor connection
Chain
Anchor windlass
Electric
Sprayhood
Bimini
Cockpit tent
Outdoor cushions
Sea rails
Push- and pulpit(s)
Swimming ladder
Dinghy
Brig
Outboard engine
Hideac(Lazilas) 3 hp
Trailer
Davits
Single hoist davit.
Fenders, lines
Cockpit table
Life buoy
Life raft
Bilge pump
Manual Electric
Fire extinguisher
Radar reflector
Life jackets
Gas bottle locker with drain
Self-draining cockpit
Additional information

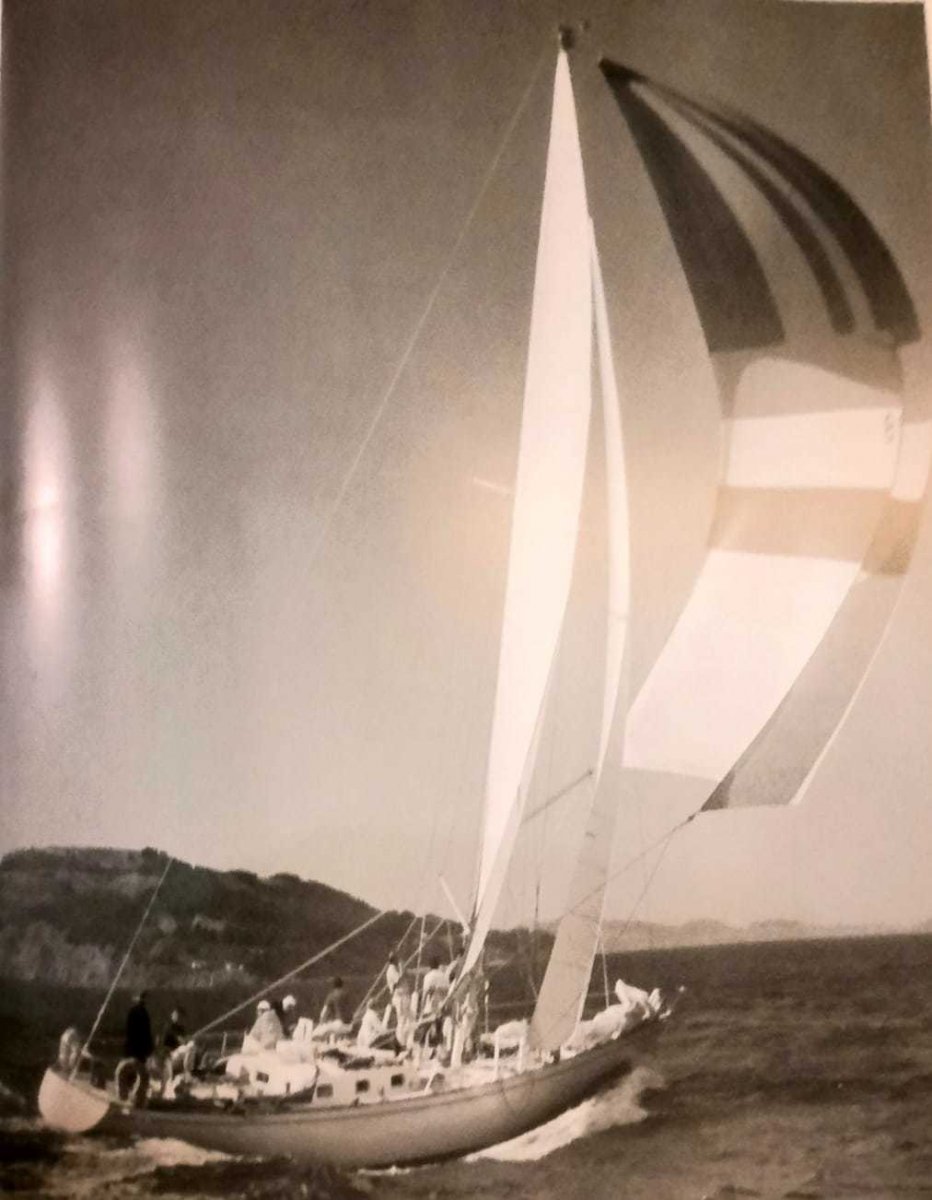

The design of 'Levante' captures the imagination both on the outside and inside. In the early 1970s this ship raced under the name 'GEM' skippered by owner William Ziegler III. Because only five sister ships were built, we can safely speak of a ship that is unique in its kind. Levante can be sailed perfectly singlehanded because all lines run into the cockpit.
